No. |
Name |
Function |
Material |
|

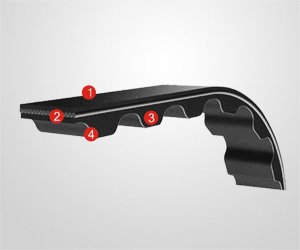

1 |
Top Rubber |
Protect the linling tensile
member |
CR HNBR |
|
2 |
Tensile Member |
Core material to pass the
dynamic force |
Glass Filber |
|
3 |
Teeth Rubber |
Protect the tensile member and
maintain the shape of the rubber |
CR HNBR |
|
4 |
Teeth Fabric |
Maintain the shape of the
adhesive |
Elastic Fabric
|
| Feature |
- lt may solve the problems such
as low transmission efficiency and lubrication
oil required under the status of high speed when
suing the chain,distance limit between the drive
part and the slave drive part when using the
gear.
- Glass fiber as tensile
member.no elongation of rubber belt.
- Excellent
heat-resistance,oil-proof,and wearing resistance
- Higher transmission efficiency
can be guaranteed under the condittion of large
change of peration speed and temperature.
- lts performance can be exerted
stably and safely during the process of
high-speed rotation.
|

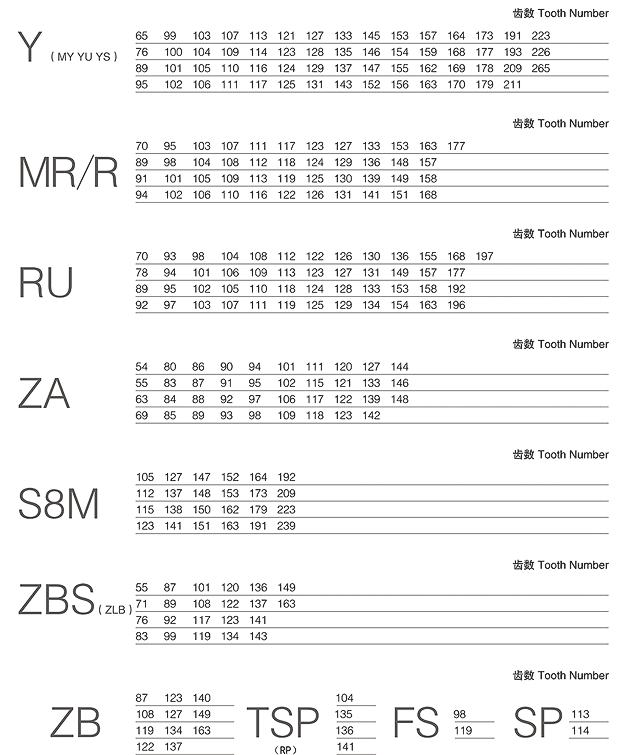

| Section Size
Synchronous Belt for Automobile
|
|
Type |
Pitch(mm) |
Tooht
Height（mm） |
Belt height
(mm) |
|
ZA |
9.525 |
1.91 |
4.10 |
|
ZB |
9.525 |
2.92 |
4.50 |
|
ZH |
9.525 |
3.50 |
5.50 |
|
YH |
8.00 |
3.04 |
5.20 |
|
ZR |
9.525 |
3.20 |
5.70 |
|
YS |
8.00 |
2.00 |
5.10 |
|
ZS |
9.525 |
3.53 |
5.70 |
|
YA |
8.00 |
2.95 |
5.20 |
|
ZAS |
9.525 |
2.32 |
4.62 |
|
ZBS |
9.525 |
2.76 |
5.06 |
|
S8M(YU) |
8.00 |
3.05 |
5.30 |
|
FS |
9.525 |
3.05 |
5.35 |
|
MY |
8.00 |
3.06 |
5.20 |
|
MR |
9.525 |
3.54 |
5.69 |
|
RU |
9.525 |
3.41 |
5.40 |
|
ZLB |
9.525 |
2.70 |
5.05 | |
