Description:

Wrapped V-Belt
Our company takes the laed in successfuily deceloping new generation enhanced-type oil proof triangular beit.Ditterent from the technology triangular beit,it is manufactured using the technology of raw edge V belt. lts principat part is made of oil proof and best heat resistance.compound rubber,and the framework is made of special polyester stiff cord.

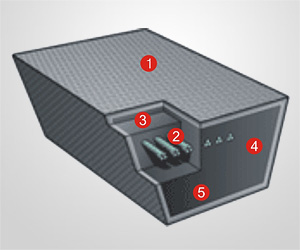

Structure

No.	Name	Function	Material
1	Outside Fabric	Protect the linling tensile member	Polyester Cotton Canvas
2	Tensile Member	Core material to pass the dynamic force	Polyester Wire
3	Top Rubber	Maintain the top shape of the adhesive tape	NR、CR、SBR
4	Buttom Rubber	Support and protect the adhesive force of the tensile member	NR、CR、SBR
5	Buttom Rubber	Maintain the bottom shape of the adhesive tape	NR、CR、SBR

Feature

The wrapper protects the inner layer,strong durability.
Special core rubber used,small elongation and long service life
Excellent heat-resistance,oil-proof,and wearing resistance
Prevent the generation of the static and keep safe use
Small friction coeffion coefficient and large transmission effect during operation
Less noise during operation

Size of Section

Type	Top width	Beit Thickness	Angle	Production scope
M	10	6	40	15-120
A	13	8	40	18-360
B	17	11	40	22-550
C	22	14	40	33-600
D	32	19	40	80-600
E	38	23	40	110-600
